Trident CLO
Fully Automatic Closed-Loop Cleaning System for Low-High Volume Production
  • Removes Water Soluble (OA) Flux
  • Cleans Using DI Water Only (No Chemicals)
  • Fully Closed-Loop Operation
  • Automatic Cleaning and Drying Cycles
  • Built-In Programmable Cleanliness Verification Testing
  • Unlimited Program Recipes
  • Graphic User Touchscreen Interface
  • Advanced Statistical Process Control (SPC) Data-Logging with Available Barcode Scanner
  • High-Power Forced Hot-Air Convection + Radiant Drying System
  • Built-In Programmable Maintenance Reminders

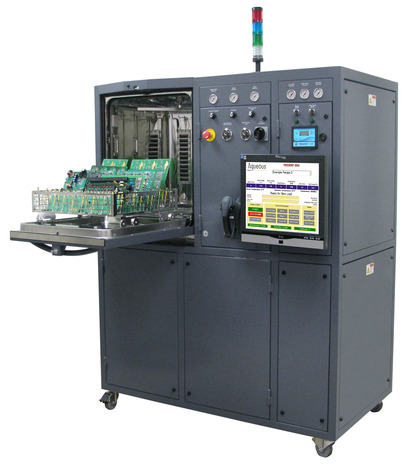

Trident CLO provides fully automatic cleaning, cleanliness verification, and dry functions at the push of a single button. Equipped with an asymmetrical fan-jet spray system, Trident CLO's twin stainless steel counter rotating spray bars feature twenty stainless steel fan-jet nozzles project precision-diffused deionized water onto a shadow-mitigating oscillating board rack. This spray system was implemented to deliver controlled fluid energy underneath fine-pitch components.
​
Features:
  • Dimensions: 44.75"W x 44.25D x 70”H
  • Electrical Requirements: 208-240 3Ø 40 amps
  • Control System: Windows 7 PC User Interface Touchscreen
  • Advanced SPC Data Collection
  • Assembly Barcode Scanning Capability (barcode scanner optional)
  • Built-In Cleanliness Verification Technology: Standard
  • Construction: Welded Steel Tube Frame with Steel Panels
  • Finish: Baked Powder-Coat Hammer-Tone Finish
  • Plumbing Materials: Stainless Steel
  • Fluid Delivery Technology: 20 Asymmetrically Placed 15° Stainless Steel Nozzles
  • Number of Process Chambers: 1 Standard (2-4 Optional)
