Trident ZDO
Zero Discharge Fully Automatic Cleaning System for Low-High Volume Production

  • Removes Any Flux From Any Alloy
  • Closed-Loop (Zero Discharge) Wash Cycle
  • Zero Discharge Rinse Cycle
  • Automatic Wash, Rinse, and Dry Cycles
  • Built-In Programmable Cleanliness Verification Testing
  • Built-In Closed-Loop Rinse Water Recycling System
  • Unlimited Program Recipes
  • Graphic User Touchscreen Interface
  • Automatic Chemical Dosing and Mixing System
  • Optional Real-Time Chemical Concentration Monitoring
  • Advanced Statistical Process Control (SPC) Data-Logging with Barcode Scanner (Included)
  • High-Power Forced Hot-Air Convection + Radiant Drying System
  • Built-In Programmable Maintenance Reminders
  • Pre-Plumbed for optional Upper Board Rack
  • Four-Position LED Status Light Tower

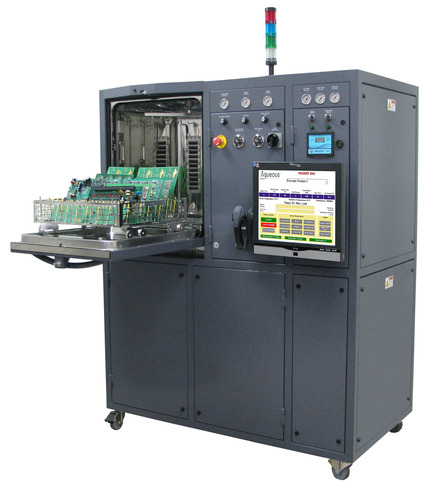

Trident ZDO provides fully automatic wash, rinse, cleanliness verification, and dry functions and is capable of removing any flux from any alloy without sending a single from of fluid to the drain. Equipped with an asymmetrical fan-jet spray system, Trident ZDO's twin stainless steel counter rotating spray bars feature twenty stainless steel fan-jet nozzles project precision-diffused wash solution and rinse water onto a shadow-mitigating oscillating board rack. This spray system was implemented to deliver controlled fluid energy underneath fine-pitch components. Trident ZDO is pre-plumbed to accept an optional upper board rack assembly for even higher throughput.
Trident ZDO includes a closed loop (zero discharge) wash solution section and an zero-discharge rinse section.

Features:
  • Dimensions: 42 ¼”Dx 56”W x 70”H
  • Electrical Requirements: 208-240 3Ø 40 amps
  • Chemical Dosing and Mixing: Automatic 5% - 20% Concentrations
  • Control System: Windows 7 PC Touchscreen User Interface
  • Advanced SPC Data Collection
  • Assembly Barcode Scanning Capability (barcode scanner included)
  • Built-In Cleanliness Verification Technology: Standard
  • Construction: Welded Steel Tube Frame with Steel Panels
  • Finish: Baked Powder-Coat Hammer-Tone Finish
  • Plumbing Materials: Stainless Steel
  • Fluid Delivery Technology: 20 Asymmetrically Placed 15° Stainless Steel Nozzles
  • Number of Process Chambers: 1 Standard (2-4 Optional)
